Vibrating screens and sieves

The rapid vibrations of the screen/screen plate transport the product in an efficient, tossing motion that provides separation of the bulk material into the desired particle size fractions. The optimum machine design (including acceleration due to gravity) can be adjusted for each application by varying the shaft to balance the force.

In addition to inclined screening machines, we are manufacturing horizontal sieves (safety and selection sieves) providing efficient screening with minimal mounting height.

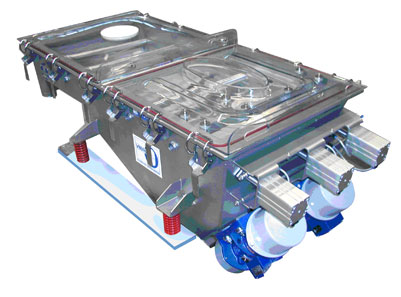

G Series Vibrating Screens

For general applications.

These are closed, easy to clean screens, designed with 1 to 3 screen layers. The screens can be equipped with an easy-to-remove plate and a cover with tensioners designed for use in continuous operation lines and thus eliminate downtimes due to the very fast changeover. The different machine types are designed for general use applications, for example, screeners, circular screening machines or specially developed SRK Series plastic granulate separation machines with an adjustable feed angle and optimum ease of cleaning.

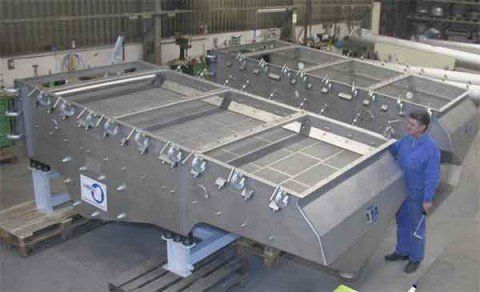

SR/DV type and screening machines

To complete the screening series, there is the heavy duty range. Suspension spring drive system and materials used are basically the same as vibrating conveyors.

Screening surface areas can vary from 0.16 to 10 m2.
